Height adjustment without a power supply

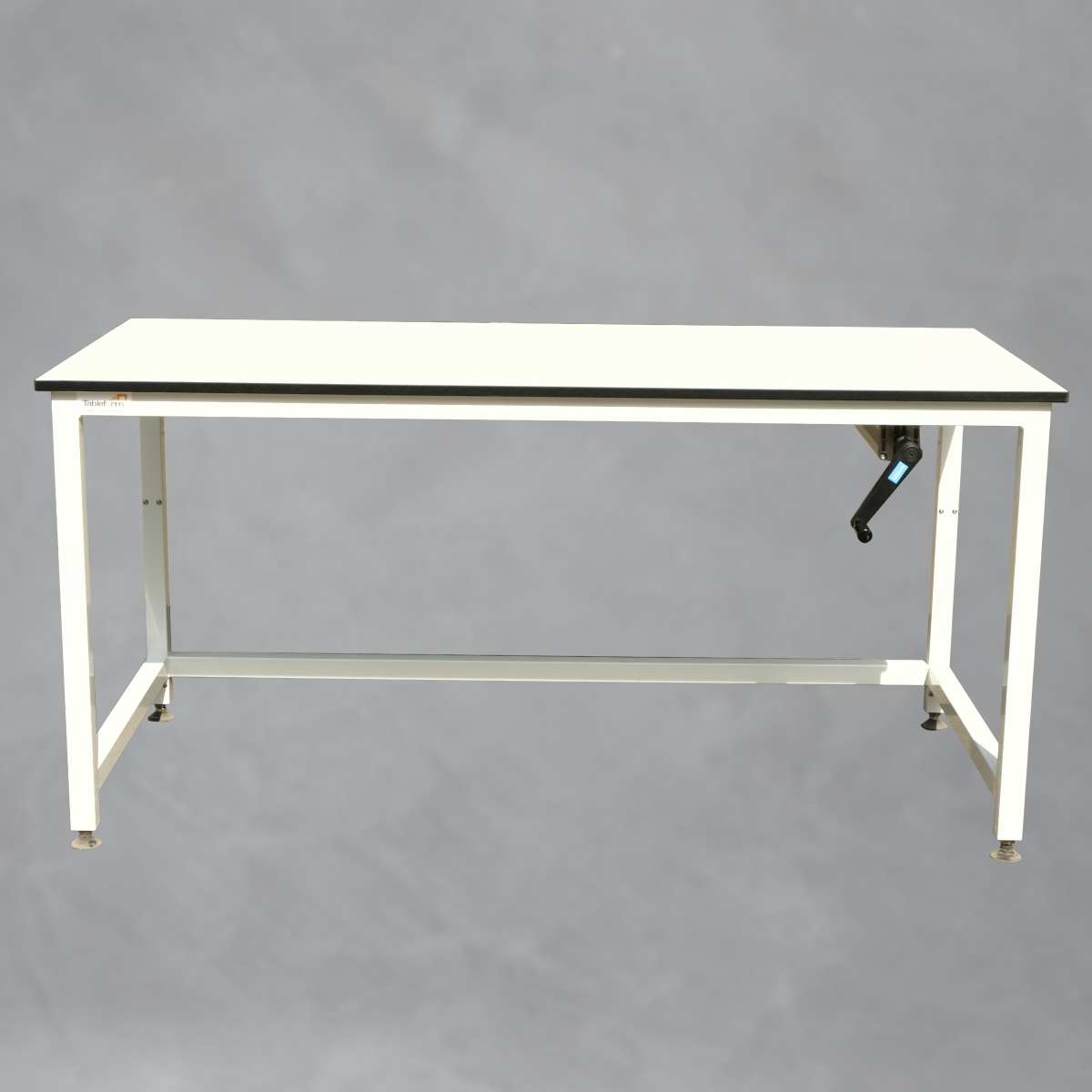

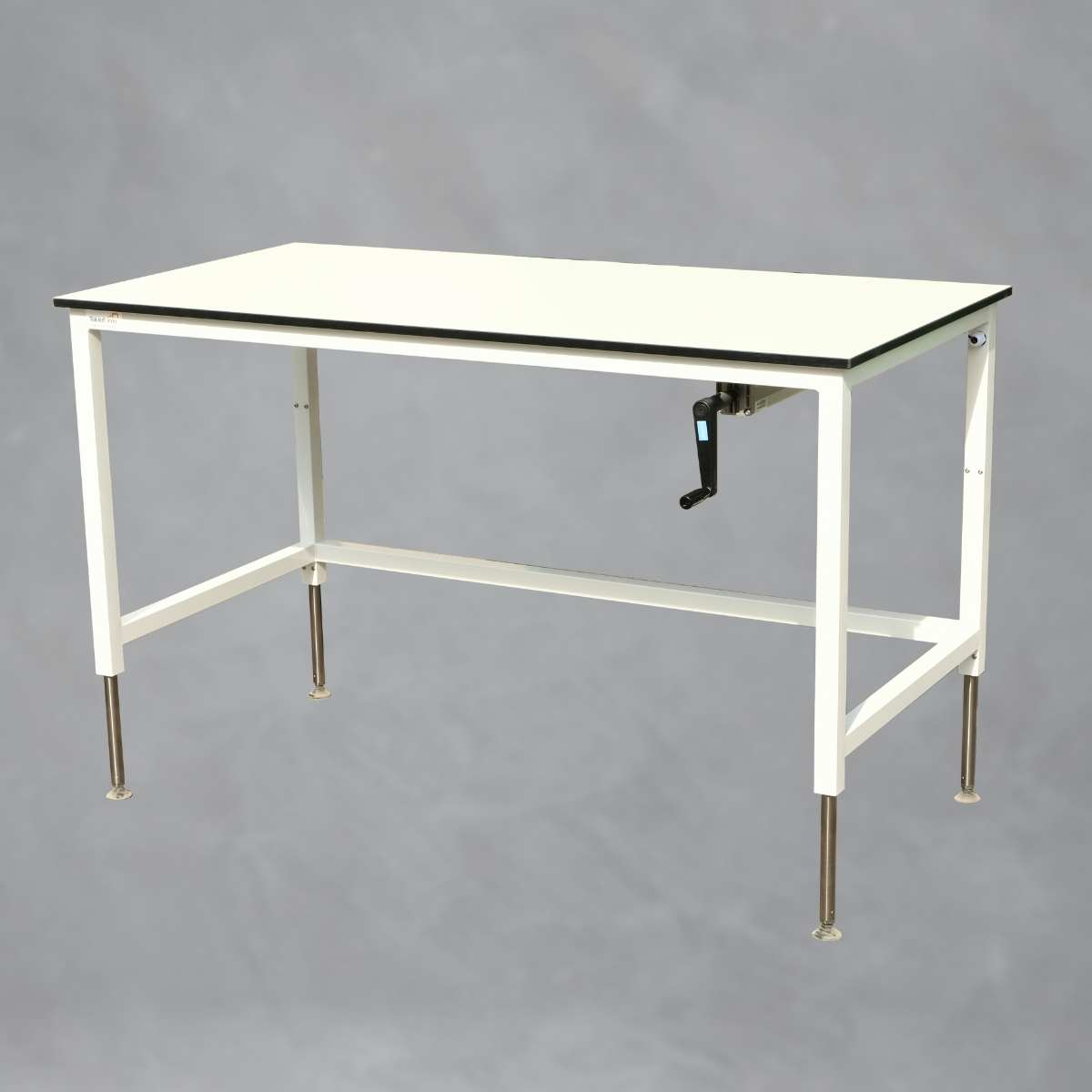

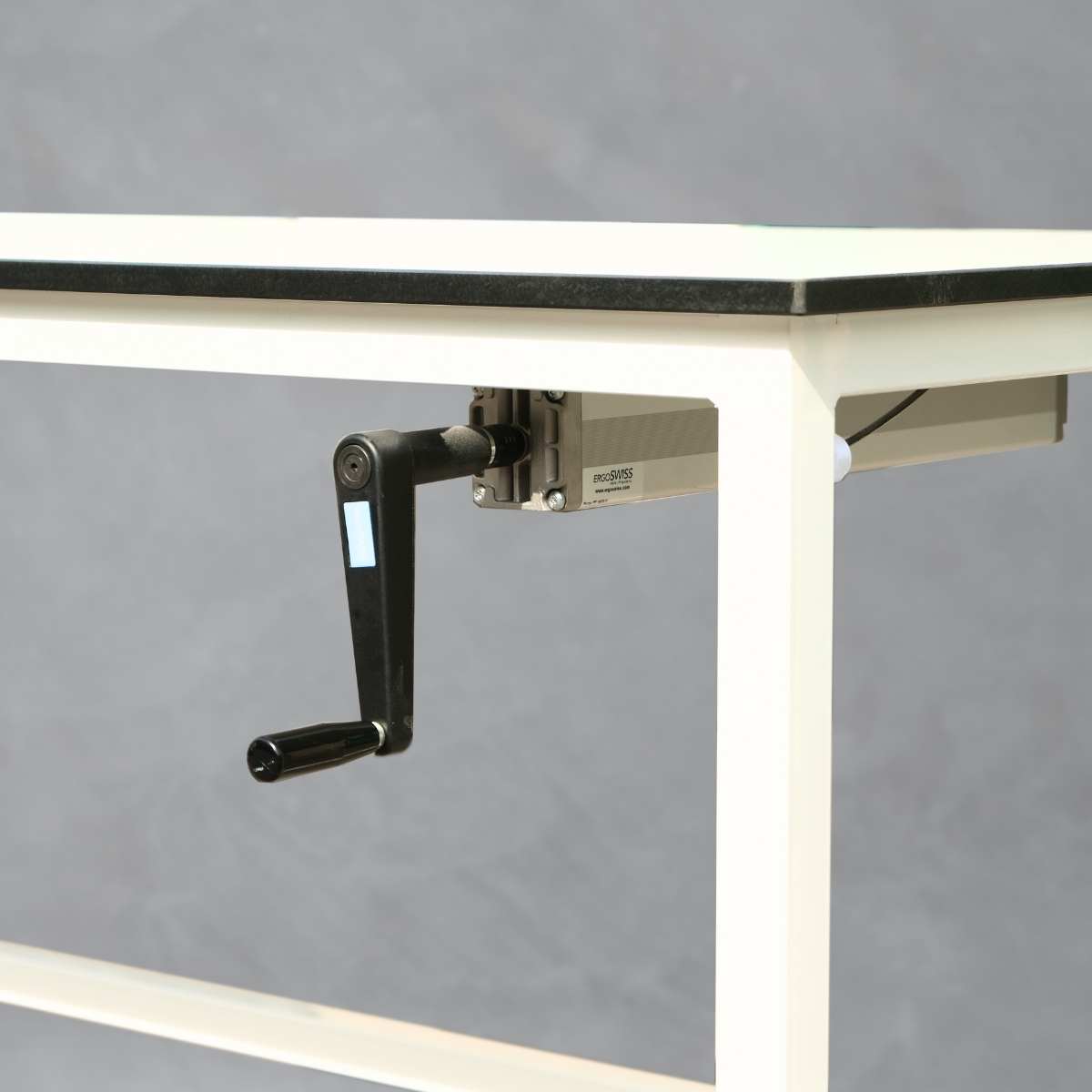

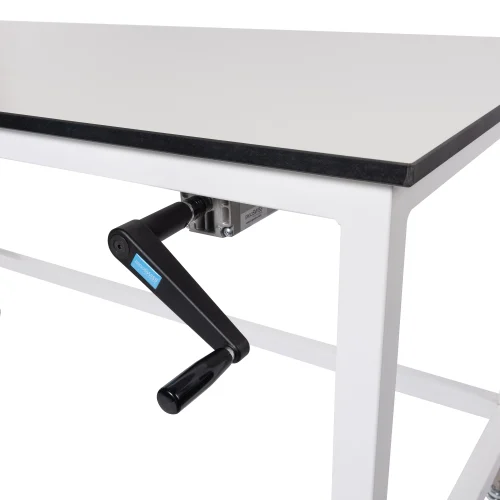

These hydraulic height adjustable tables raise and lower on a crank handle driven hydraulic system, so they need no mains connection at all. That removes the trailing lead and the socket requirement, which is useful in labs where power outlets are already committed, in wet areas, and anywhere a bench needs to move without being unplugged first.

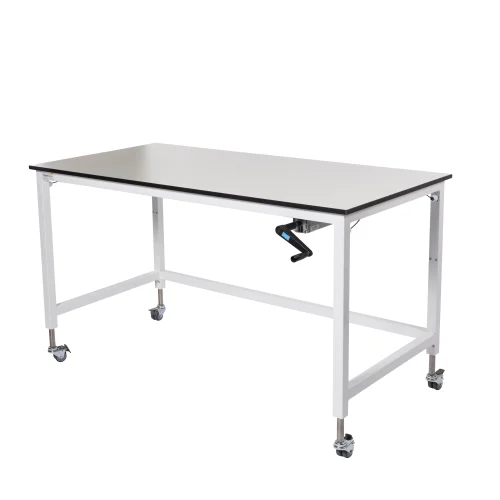

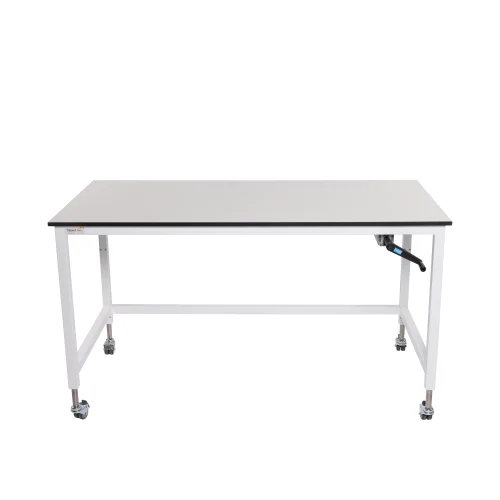

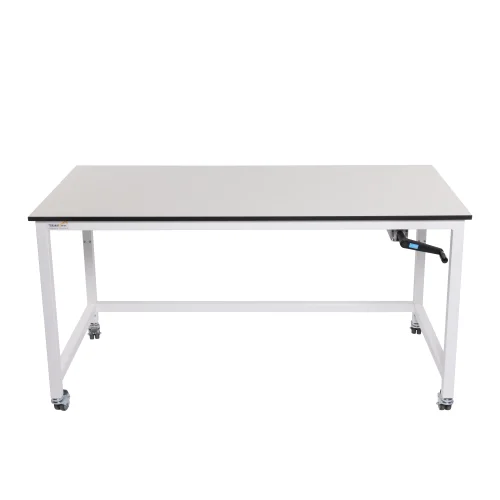

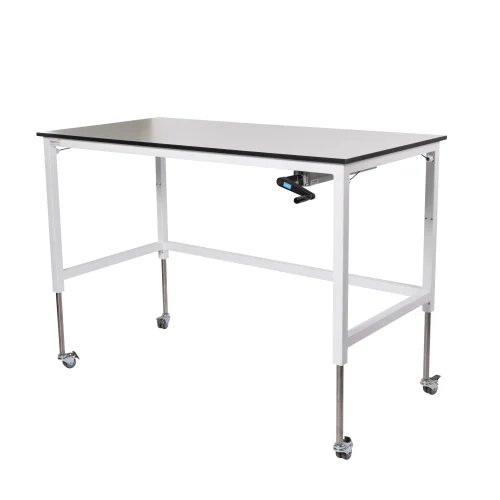

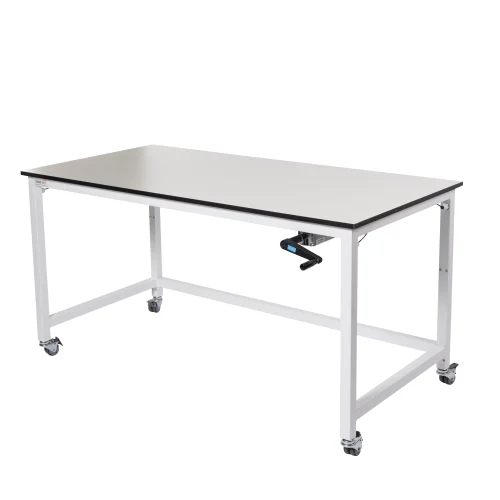

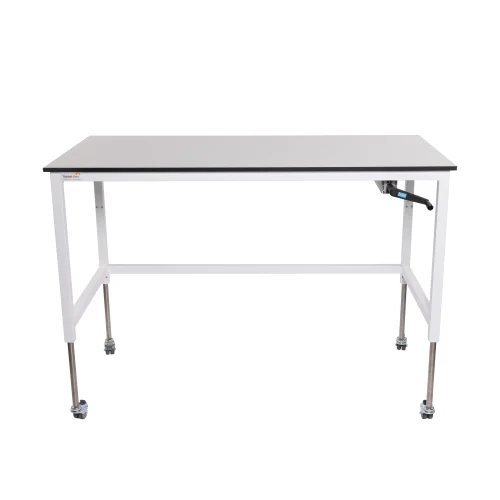

The hydraulic mechanism carries 350kg static loading on fixed models and 300kg on mobile, across a 700mm to 1375mm height range on static tables or 760mm to 1435mm on mobile.
Four leg heavy duty frame
Four legs spread the load closer to each corner, keeping the table stable under heavy equipment and across longer spans. Combined with 38mm box section welded construction, it makes this a good choice where a bench carries permanent instrumentation but still needs to change height.
Bought direct from the manufacturer
We build our hydraulic height adjustable tables in our own UK workshop rather than buying them in, so there is no reseller markup between us and your lab, and technical questions about loading or height range go to the people who make them.
Trespa TopLab Base worktop as standard
The worktop is 16mm Trespa TopLab Base, resistant to chemical spills, scratching and abrasion, and rated from -40°C to +180°C so heated equipment can sit directly on the surface. All edges are chamfered and polished.
Standard sizes or bespoke to your drawing
Available from 1000mm through to 2000mm wide with a 750mm depth. Because every table is built to order, we can work to a size, height range or loading requirement outside the standard range. Send us your dimensions or a drawing and we will quote directly.
Looking at other options? See our four leg electric tables for push button control at 400kg, or get in touch for bespoke height adjustable benching.
Sample Drawing
Below is a sample hydraulic height adjustable lab table drawing with dimensions as a guide.
When an order is placed we send out a drawing for approval to confirm all sizes are as required.
